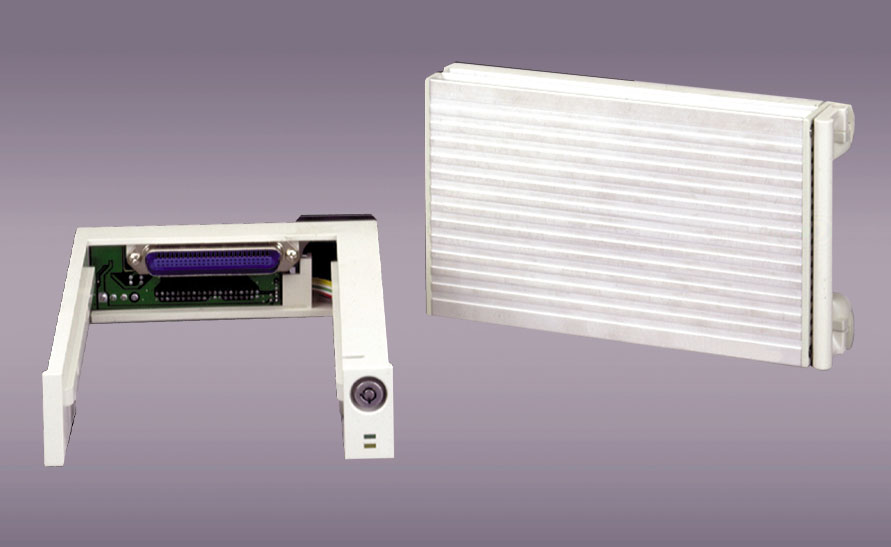

RH-40 Aluminum Driver Carrier Mobile Rack for 3.5" 1" height HDD

RH-40 Series (For 3.5" & Half-Height 3.5" H.D.D.)

Product Overview: The RH-40 Mobile Rack is a Aluminum Driver Carrier,with Ball Bearing Cooling Fan.To Provide Cooling Capacity for install Spindle Speed 7200 R.P.M 3.5" H.D.D. Easy Slide out drive Carrier Function Handle. Drive Lock and DC Power Switch Key Lock.

SPECIFICATIONS:

Environmental Specifications
	Operating	Storage
Ambient Temperature	-5°C to 45°C	-20°C to 60°C
Relative Humidity(1)	-10% to 80%	10% to 90%
Alititude	-1,000 to 50,000ft	-1,000 to 50,000 ft
	-304m to 15240m	-300m to 15,240m
Shock	More then StorageDriver

(1)Non-condensing with maximum Gradient of 10%per hour

　

PHYSICAL DIMENSIONS

Physical Specifications	Inner Rack Carrier	Outer frame Receiving frame
Height	35.70mm (1.406")	42.40mm (1.669")
Width	119.00mm(4.685")	146.00mm (5.748")
Depth	202.00mm (7.952")	219.00mm (8.622")
Weight	0.41Kg (0.9Ibs)	0.25Kg (0.55 Ibs)

Chassis Reliability/Maintainability
MTBF	500,000 Hours
Connector insert cycle	Surpass 2,500 times
Preventive Maintenance	None

The Mobile Rack was made with heat-spreading vents on front side and from those vents air is into H.D.D. Hence the High-Capacity H.D.D. would be with good performance of heat-spreading and would easily read data without any mistakes.
