CE APPROVED - RH-29

RH-29
Aluminum: The strict choice for Mobile Rack

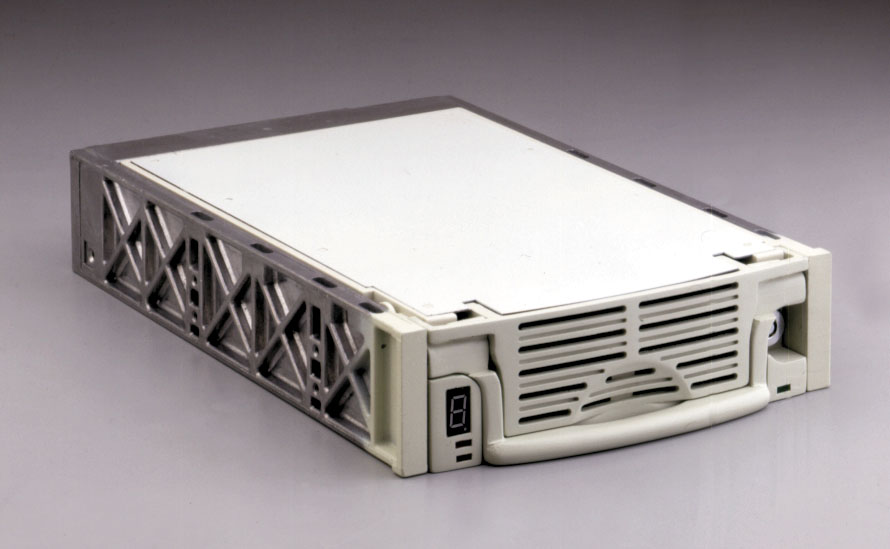

RH-29 Series (For 3.5" & Half-Height 3.5" H.D.D.)

Product Synopsis:

The RH-29 H.D.D.Removable Rack is a metal Aluminum drive carrier and receiving frame,for internal mounting an 3.5"H.D.D(1.62"height,1"height) into 5 1/4" peripheral bays.�� RH-29 is designed to provide especial High speed H.D.D. to install on file Server and RAID Applications.

U. S.A. Patent No:	5563767
Germany Patent No:	295055782
Netherlands Patent No:	1001463
Japan Patent No:	3025779
Taiwan Patent No:	111516
Pending Patent:	United Kingdom, France, Korea,China, Poland etc.

Powerful Easy-to-Use Functions:�

Function Handle:Easy silde out drive carrier from receiving frame.
KeyLock Set:DC.Power control and drive lock.
ID Display,LED:Indicator 0 to 7 or 0 to F drive ID.
ID Rotating Switch:Easy to select any ID.(After connect ID.cable to H.D.D)
Dual Cooling Fan in Front Face:Use ball bearing brushless cooling fans forced convection airflow to provide cooling capacity sufficient for use on 10,000 R.P.M. H.D.D.
Cooling Fans Detection:When fans run out of limit,the alarm system buzzer and flash L.E.D.will activate.

Specifications/Dimensions

　

ENVIRONMENTAL CONDITIONS

	Operating	Storage
Ambient Temperature	-5°C to 45°C	-45°C to 75°C
Relative Humidity	-10°C to 80°C	10°C to 90°C
Alititude	-1000 to 50,000ft
Alititude	-304m to 15240m
Shock	More then H.D.D

PHYSICAL DIMENSIONS

	Carrier	Receiving Frame
Height	42.0mm 1.654"	42.4mm 1.669"
Width	130.6mm 5.142"	146.0mm 5.748"
Depth	203.0mm 7.992"	218.0mm 8.583"
Weight	0.61Kg 1.35 Ibs	0.39Kg 0.86 Ibs

RELIABILITY

MTBF	5000,000.Hours
Durability	25000 insertion and removal cycles at maximum rate of 200 cycles per hour
Preventive Maintenance	None

The Mobile Rack was made with heat-spreading vents on front side and from those vents air is into H.D.D. Hence the High-Capacity H.D.D. would be with good performance of heat-spreading and would easily read data without any mistakes.
