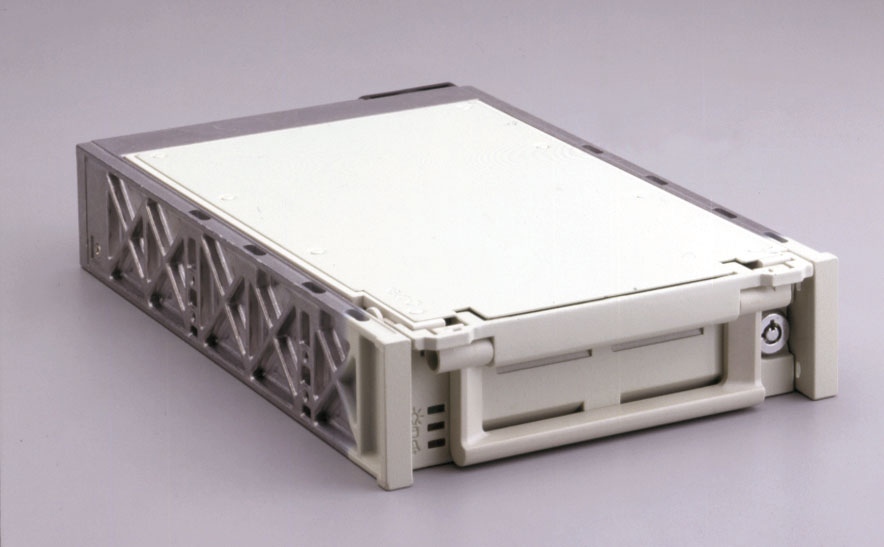

RH-25 Series (For 3.5" & Half-Height 3.5" H.D.D.)

Main Features:

• Inner Rack & Outer Frame - Aluminum, Top Cover, Bottom Cover, Cooling Fan for best heat-spreading of H.D.D., Patent Pulling Function Handle which meets completely "Ergonomics" and has got several patents from overseas countries as follows:

  U. S.A. Patent No:	5563767
  Germany Patent No:	295055782
  Netherlands Patent No:	1001463
  Japan Patent No:	3025779
  Taiwan Patent No:	111516
  Pending Patent:	United Kingdom, France, Korea
  	China, Poland etc.

Host Interface:

• "A" means IDE, 64Pin.
• "S" means SCSI, 64Pin.
• "W" means Wide-SCSI, 96Pin.
• Inner Rack Swap:RH-28.

Cooling Fan installed in interface of outer frame for detection. Flash LED alarm & Buzzer for detection of cooling fan.

Power Control:

• "E" means Electronic keylock.
• "P" means Push Button lock.
• Host Interface of Inner Rack & Inner Rack is compatible.

CE approved:

• "C" means CE approved
• (Germany Certificate #256357).

Test Item:

1. Temperature Test:

   TEST EQUIPMENT.

   1. CASE - MINI TOWER CASE (COMPLETED BULIDED)
   2. IDE HDD - SEAGATE ST-32140A (2.1GB, ATA-2, 5400R.P.M.)
   3. SCSI HDD - QUANTUM FB10S011 (1.08GB, SCSI, 5400R.P.M.)



2. Host Interface Test:
   1. Resistance between wire to wire: over 3M ohm
   2. Wiring Resistance between end to end: 500m ohm

   3. Negative Load:	12V2A
      	5V1A

   ---

   CE Model WIDE - SCSI

   1. Outer Frame:
      Aluminum Die-Casting.
   2. Inner Rack:
      Aluminum Die-Casting.
   3. Handle:
      Worldwide Patent Pulling Function Handle. Material - 94V0 Fireproof.
   4. Top Cover:
      Material - 94V0 Fireproof.
   5. Bottom Cover:
      Coating Iron without Ventilator.
   6. Pin:
      FC - 96Pin ; UL approved.
   7. Connector of Inner Rack & Outer Frame :
      Wide - SCSI 96Pin,UL approved. DIN 41612  96Pin, UL approved.
   8. Keylock of Inner Rack & Outer Frame:
      Electronic keylock.
   9. LED light & Wire:
      Size of light head : 2 x 5 m/m + 0.05 m/m. Depth of light head: 6.4+0.1m/m Wire Material - UL approved.
   10. Cooling Fan:
       Material - 94V0 Fireproff, UL approved.
   11. Top Cover:
       Coating Iron, without Ventilator.
   12. Large 4Pin Female Base:
       Connected with large 4Pin Male Base of H.D.D. Color-Yellow, Black, Black, Red. Wire Material - UL approved.
   13. Screw:
       Material - China Steel CHQ M/T 6 #X6
   14. Power Cord:
       To check the length and color (Yellow, Black, Black, Red) of wire and if the tinned status is in good condition.
   15. 96 Pin:

       1. To check if the pins are bent and broken.
       2. To check if the position between pin of PC board and the pin is right.
       3. To check if the electroplating of the pin is qualified.
   16. Lock:
       Material - Zinc, Electroplating on surface.
       1. The front side of lock must be smooth.
       2. The size of lock should be matched with the drawing (inclusive of lock stick and lock piece).
       3. The switch of lock should be working smoothly.
       4. The electroplating on front side of lock should be polished.
       5. The length of lock stick should be in 10.0 m/m + 0.3 m/m
   17. PC Board:
       Material - FR - 4 Oxyacetylene Resin, Glass Fiber.
       1. To check the circuit drawing of PC board.
       2. To check the position of all parts on PC board.
       3. to check other details.
   18. Fan:
       Material - 94V0 Fireproof, UL approved.
       1. To check if it can be well working after installed on instrument.
       2. To check if the position of four screw holes is right.
   19. Electronic Parts:
       They were made in accordance with the Standard of Voltage/Current of H.D.D. and were approved by Security Standard.

   The Mobile Rack was made with heat-spreading vents on front side and from those vents air is into H.D.D. Hence the High-Capacity H.D.D. would be with good performance of heat-spreading and would easily read data without any mistakes.
