RH-20

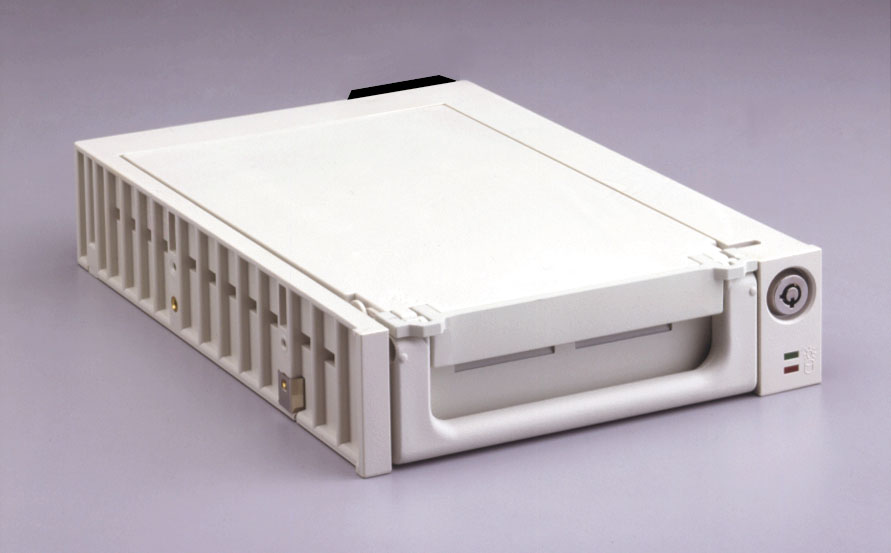

RH-20RH-20 Series (For 2.5"/3.5" H.D.D.)

Main Features:

  • Inner Rack, Outer Frame, Top Cover, Bottom Cover combined with inner rack, Cooling Fan for best heat-spreading of H.D.D., Patent Pulling Function Handle which meets completely "Ergonomics" and has got several patents from overseas countries as follows:
    U. S.A. Patent No: 5563767
    Germany Patent No: 295055782
    Netherlands Patent No: 1001463 Japan Patent No: 3025779
    Taiwan Patent No: 111516
    Pending Patent: United Kingdom, France, Korea,China, Poland etc.
    Host Interface:
    • "A" means IDE, 50Pin.
    • "S" means SCSI, 50Pin.
    • Inner Rack Swap:RH-06, RH-07, RH-10, RH-11 & RH-12.
Power Control:
  • "E" means Electronic keylock.
  • "P" means Push Button lock.
  • Host Interface of Inner Rack & Inner Rack is compatible.
CE approved:

  • "C" means CE approved
  • (Germany Certificate #256357).
  • CE Clip Spring for Grounding (Taiwan Patent #85207540).
  • "N" means without CE approved


Test Item:
  1. Temperature Test:

      TEST EQUIPMENT.

    1. CASE - MINI TOWER CASE (COMPLETED BULIDED)
    2. IDE HDD - SEAGATE ST-32140A (2.1GB, ATA-2, 5400R.P.M.)
    3. SCSI HDD - QUANTUM FB10S011 (1.08GB, SCSI, 5400R.P.M.)

  2. Host Interface Test:
    1. Resistance between wire to wire: over 3M ohm
    2. Wiring Resistance between end to end: 500m ohm
    3. Negative Load: 12V2A
      5V1A

    RH-20

    1. Outer Frame:
      Material -ABS Plastic ; Brand - Chi Mei 707. with Auto - Door.
    2. Inner Rack:
      Material -ABS Plastic ; Brand - Chi Mei 707. Combined with Bottom cover, with Ventilator.
    3. Handle:
      Worldwide Patent Pulling Function Handle. Material -ABS Plastic ; Brand - Chi Mei 707.
    4. Top Cover:
      Material -ABS Plastic ; Brand - Chi Mei 707. without Ventilator.
    5. Bottom Cover:
      Material -94V0 Fireproof. UL Ventilator.
    6. Pin:
      IDE - 40Pin ; SCSI - 50Pin.
    7. Connector of Inner Rack & Outer Frame :
      Centronic 50 Pin. with UL approved.
    8. Keylock of Inner Rack & Outer Frame :
      Mechanical Keylock, Electronic keylock and Push Button for choice.
    9. LED light & Wire:
      Size of light head : 2 x 5 m/m + 0.05 m/m. Depth of light head: 6.4+0.1m/m Wire Material - UL approved.
    10. Large 4Pin Female Base:
      Connected with large 4Pin Male Base of H.D.D. Color-Yellow, Black, Black, Red. Wire Material - UL approved.
    11. Screw:
      Material - China Steel CHQ M/T 6 #X6

    The Mobile Rack was made with heat-spreading vents on front side and from those vents air is into H.D.D. Hence the High-Capacity H.D.D. would be with good performance of heat-spreading and would easily read data without any mistakes.
