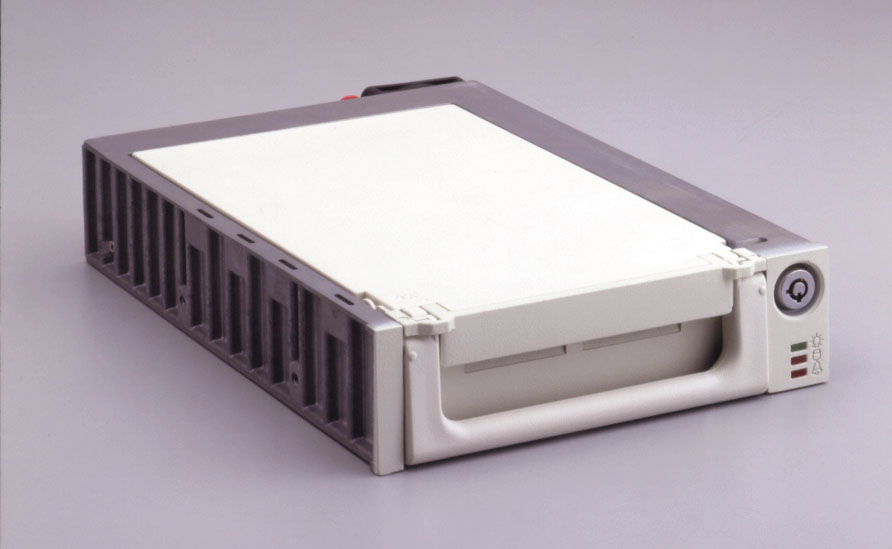

RH-18 Series (For 3.5" H.D.D.)

Main Features:

• Inner Rack, Outer Frame-Aluminum, Top Cover, Bottom Cover, Cooling Fan for best heat-spreading of H.D.D., Patent Pulling Function Handle which meets completely "Ergonomics" and has got several patents from overseas countries as follows:

  U. S.A. Patent No:	5563767
  Germany Patent No:	295055782
  Netherlands Patent No:	1001463
  Japan Patent No:	3025779
  Taiwan Patent No:	111516
  Pending Patent:	United Kingdom, France, Korea
  	China, Poland etc.

Host Interface:

• "A" means IDE, 64Pin.
• "S" means SCSI, 64Pin.
• "W" means Wide-SCSI, 96 Pin.
• Inner Rack Swap:RH-19.
• Cooling Fan installed in interface of outer frame for detection.
• Flash LED alarm & Buzzer for detection of cooling fan.

Power Control:

• "E" means Electronic keylock.
• "P" means Push Button lock.
• Host Interface of Inner Rack & Inner Rack is compatible.

Test Item:

1. Temperature Test:

   TEST EQUIPMENT.

   1. CASE - MINI TOWER CASE (COMPLETED BULIDED)
   2. IDE HDD - SEAGATE ST-32140A (2.1GB, ATA-2, 5400R.P.M.)
   3. SCSI HDD - QUANTUM FB10S011 (1.08GB, SCSI, 5400R.P.M.)



2. Host Interface Test:
   1. Resistance between wire to wire: over 3M ohm
   2. Wiring Resistance between end to end: 500m ohm

   3. Negative Load:	12V2A
      	5V1A

   ---



   1. Outer Frame:
      Aluminum Die - Casting.
   2. Inner Rack:
      Aluminum Die - Casting. with Ventilator on front sides.
   3. Handle:
      Worldwide Patent Pulling Function Handle. Material - 940V0 Fireproof.
   4. Top Cover:
      Material - 940V0 Fireproof. with Ventilator.
   5. Bottom Cover:
      Aluminum without Ventilator.
   6. Pin:
      DIN 41612  64Pin, UL approved. DIN 41612  96 Pin, UL approved.
   7. Connector of Inner Rack &Outer Frame :
      DIN 41612  64Pin, UL approved. DIN 41612  96 Pin, UL approved.
   8. Keylock of Inner Rack & Outer Frame :
      Electronic keylock.
   9. LED light & Wire:
      Size of light head : 2 x 5 m/m + 0.05 m/m. Depth of light head: 6.4+0.1m/m Wire Material - UL approved.
   10. Cooling Fan:
       Material - 94V0 Fireproff, UL approved.
   11. Large 4Pin Female Base:
       Connected with large 4Pin Male Base of H.D.D. Color-Yellow, Black, Black, Red. Wire Material - UL approved.
   12. Screw:
       Material - China Steel CHQ M/T 6 #X6

   The Mobile Rack was made with heat-spreading vents on front side and from those vents air is into H.D.D. Hence the High-Capacity H.D.D. would be with good performance of heat-spreading and would easily read data without any mistakes.
