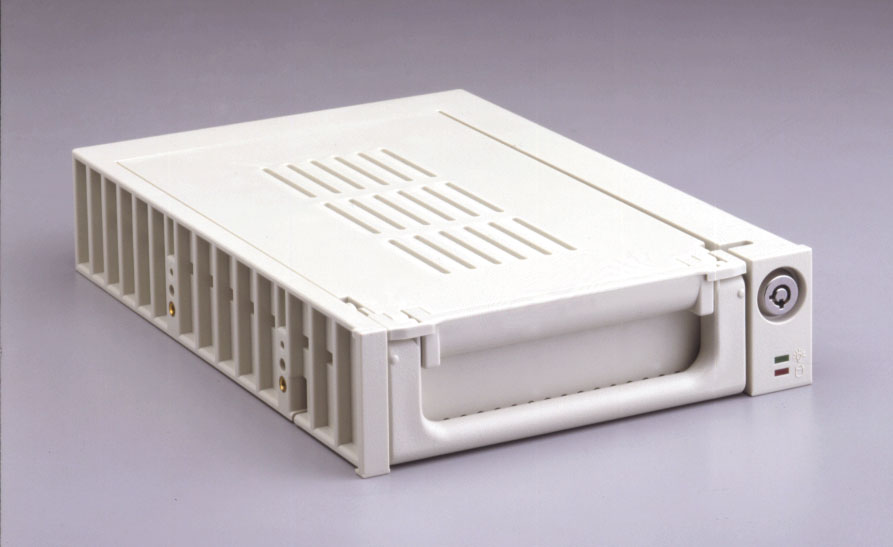

RH-10 Series (For 2.5"/3.5" H.D.D.)

Main Features:

• Inner Rack, Outer Frame, Top Cover, Bottom cover combined with inner rack,
  Patent Pulling Function Handle which meets completely
  "Ergonomics" and has got several patents from overseas countries as follows:

  U. S.A. Patent No:	5563767
  Germany Patent No:	295055782
  Netherlands Patent No:	1001463
  Japan Patent No:	3025779
  Taiwan Patent No:	111516
  Pending Patent:	United Kingdom, France, Korea
  	China, Poland etc.

Host Interface:

• "A" means IDE, 50Pin.
• "S" means SCSI, 50Pin.
• Inner Rack Swap:RH-06, RH-07, RH-11, RH-12& RH-20.

Power Control:

• "E" means Electronic keylock.
• "P" means Push Button lock.
• "N" means Mechanical keylock, without power switch.
• Host Interface of Inner Rack & Inner Rack is compatible.

CE approved:

• "C" means CE approved
• (Germany Certificate #256357).
• CE Clip Spring for Grounding (Taiwan Patent #85207540).
• "N" means without CE approved

Test Item:

1. Temperature Test:

   TEST EQUIPMENT.

   1. CASE - MINI TOWER CASE (COMPLETED BULIDED)
   2. IDE HDD - SEAGATE ST-32140A (2.1GB, ATA-2, 5400R.P.M.)
   3. SCSI HDD - QUANTUM FB10S011 (1.08GB, SCSI, 5400R.P.M.)
2. Host Interface Test:
   1. Resistance between wire to wire: over 3M ohm
   2. Wiring Resistance between end to end: 500m ohm

   3. Negative Load:	12V2A
      	5V1A

   ---



   1. Outer Frame:
      Material - ABS Plastic ; Brand - Chi Mei 707
   2. Inner Rack:
      Material - ABS Plastic ; Brand - Chi Mei 707.
      Combined with Bottom Cover, with Ventilator
   3. Handle:
      Worldwide Patent Pulling Function Handle.
      Material - ABS Plastic; Brand - Chi Mei 707.
   4. Top Cover:
      Material - ABS Plastic ; Brand - Chi Mei 707. with Ventilator.
   5. Pin:
      IDE - 40Pin ; SCSI - 50Pin.
   6. Connector of Inner Rack & Outer Frame:
      Centronic 50Pin with UL approved.
   7. Keylock of Inner Rack & Outer Frame:
      Mechanical keylock, Electronic keylock and Push Button for choice.
   8. LED light &: Wire
      Size of light head : 2 x 5 m/m + 0.05 m/m. Depth of light head: 6.4+0.1m/m Wire Material - UL approved.
   9. Large 4Pin Female Base:
      Connected with large 4Pin Male Base of H.D.D. Color-Yellow, Black, Black, Red.Wire Material - UL approved.
   10. Screw:
       Material - China Steel CHQ M/T 6 #X6
